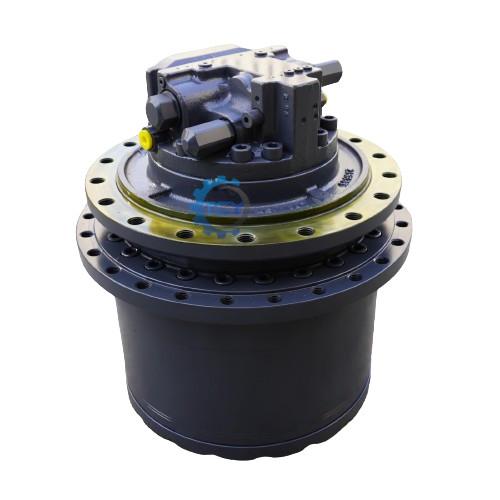

    CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

    Ask Lasest Price
    Brand Name : TCY
    Model Number : CX290 CX300 ect.
    Price : 1000-2000
    Payment Terms : T/T,Alipay,Wechat ...etc.,
    Delivery Time : 2-3/Negotiate
    • Product Details
    • Company Profile

    CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

    New Aftermarket

    CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL


    Product description



    Model:CX290 CX290B CX300 CX300CPart name:Travel Motor Assy
    Part NO.:KBA10750 LJ018700R LJ018700C LJ014910 ect.MOQ:1PCS
    Packing:Wooden casePlace of Origin:China
    Aftersale service provided:Online supportApply To:Excavator Final Device
    Delivery Time: 1-3 days Or negotiateNote: Other models can be consulted online

    Product structure diagram




    Pos.Part NoQtyParts nameComments
    KBA10750[1]MOTO-REDUCTION GEARSUM Includes All Parts On Figures 06-02-06-04 Superseded by
    part number:LJ018700,LN001980
    ··LJ018700R[1]REMAN-HYD MOTORRAC CX290B CRAWLER EXCAVATOR TIER 3(NA)(1/07-),ASSY,
    Reman for New PN KBA10750
    LJ018700C[1]CORE-MOTOR HYDRAULICRAC Return Number
    ··LJ014910[1]HYDRAULIC MOTORSUM Motor,Piston;Incl.37-116;Also Includes Parts On Figure
    06-04 Superseded by part number:LJ018700
    37.LW005120[1]BOXSUM
    38.LK005330[1]PLUGSUM
    39.LE00997[1]OIL SEALSUM
    40.800-2168[1]SNAP RING,M68,IntCAS Superseded by part number:11061376
    41.LK00394[1]PLUGSUM
    ··LJ013800[1]PISTONSUM Incl.43,44
    43.LJ013810[1]PISTONSUM Superseded by part number:LJ013800
    44.LE012890[1]SEALSUM Superseded by part number:LJ013800
    45.LB011180[1]BALLSUM
    46.LB00792[1]DRIVE SHAFTSUM
    47.LB00796
    [1]
    TAPERED BEARING,45mm IDx85mm

    ODx24.75mm W
    SUM
    ··LR015510[1]PLATESUM Incl.49,50
    49.NSS[2]NOT SOLD SEPARATCON Bearing,Roller
    50.NSS[1]NOT SOLD SEPARATCON Plate,Shoe
    51.LS00206[1]CYLINDER BLOCKSUM
    52.LG00430[9]COMPRESSION SPRINGSUM
    53.LR00862[1]SPRING SEATSUM
    54.LB00795[1]BALL JOINTSUM
    55.LH00320[1]RETAINERSUM
    56.LJ00955[9]PISTONSUM
    57.LR00859[5]ADJUSTING PLATESUM
    58.LR00858[4]PLATESUM
    59.LJ00954[1]PISTONSUM
    60.LE012900[1]SEALING RINGSUM SEALRING
    61.LE012910[1]SEALING RINGSUM SEALRING
    62.LW005130[1]COVERSUM
    76.LK00391[2]PLUGSUM
    77.154467A1[2]O-RING,10.8mm IDx2.4mm WidthSUM
    80.TK00028[5]PLUGSUM
    81.154455A1[5]O-RINGSUM
    82.TJ00129[3]CHECK VALVESUM
    83.TG00045[3]SPRINGSUM
    88.LE00999[1]O-RINGSUM
    89.LB00797[1]TAPERED BEARING,35mm IDx72mm

    ODx24.25mm W
    SUM
    ··LH00389[1]SHIM KITSUM Incl.91-96
    91.LH00428[1]SHIM,0.4mm ThkSUM
    92.LH00429[1]SHIM,0.5mm ThkSUM
    93.LH00430[1]SHIM,0.6mm ThkSUM
    94.LH00431[1]SHIM,0.7mm ThkSUM
    95.LH00432[1]SHIM,0.8mm ThkSUM
    96.LH00433[1]SHIM,0.9mm ThkSUM
    97.837-8012[1]DOWEL,M8×12CAS
    98.LR00860[1]PLATESUM
    99.LG00431[14]COMPRESSION SPRINGSUM
    115.LB00793[1]COUPLING FLANGESUM
    116.800-2140[1]SNAP RING,M40,IntCAS Superseded by part number:300644

    Exhibition



    About shipping





    FAQ



    Q:What is your sample policy?

    A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


    Q:What are your main products?

    A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

    If you need other excavator accessories, we can also supply according to your.


    Q:How long is the warranty period of the product?
    A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.


    Q:How do I order?

    A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q:How do I pay?
    A:You can pay through T/T, Alibaba trade guarantee or negotiate payment.
