TCY 333-2959 3332959 DRIVE GP SWING WITHOUT MOTOR E330C E330D E336D
CAT336E LH E336E LH SWING REDUCTION GEARBOX
| Model:E330C E330D E336D CAT336E LH E336E LH | Part name:Swing Reduction Gearbox |
| Part NO.:333-2959 3332959 378-9558 3789558 ECT. | MOQ:1PCS |
| Packing:Wooden case | Weight:280KG |
| Aftersale service provided:Online support | Apply To:Excavator Swing Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

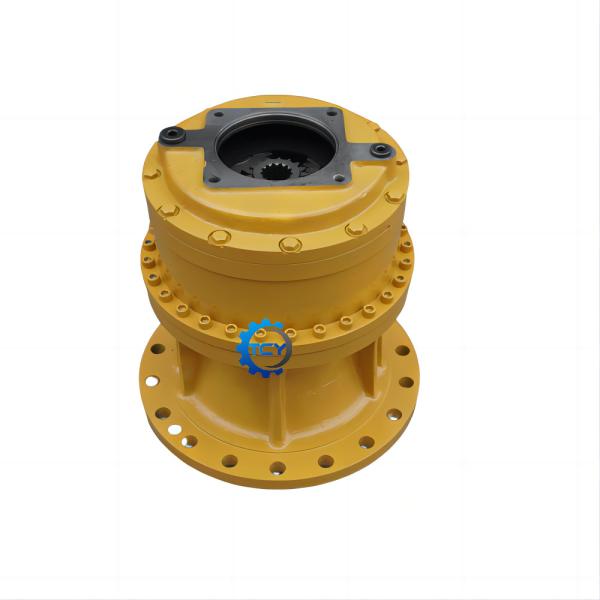

Product picture
| Pos. | Part No | Qty | Parts name |
| 1. | 4H-6112 | [1] | BREATHER (S0NG DRIVE) |
| 2. | 6V7238 | [1] | ALVE-SHUTOFF(S0NG DRIVE) |
| 3. | 7I-7611 | [1] | CAGE |
| 4. | 7I-7619 | [1] | BEARING-ROLLER |
| 5. | 7I-7684 M | [2] | SPACER(50X79.6X6-MM THK |
| 6. | 9U-8693 | [1] | BEARING-ROLLER |
| 7. | 093-1730 | [1] | RING-RETAINING |
| 8. | 094-1528 | [8] | ASHER (53X84X1-MM THK |
| 9. | 096-1441 | [1] | RING-RETAINING |
| 10. | 110-7149 | [1] | RING-RETAINING |
| 11. | 114-1322 | [1] | RING-RETAINING |
| 12. | 114-1398 | [1] | GAUGE-OIL LEVEL(S0NG DRIVE) |
| 13. | 114-1399 | [1] | PIPE-GAUGE |
| 14. | 127-3872 | [1] | HOSEAS |
| 15. | 136-2802 | [2] | CONNECTOR |
| 16. | 136-2803 | [2] | CLIP |
| 17. | 148-4600 | [1] | GEAR-SUN(17-TEETH) |
| 18. | 148-4601 | [1] | GEAR-SUN(17-TEETH) |
| 19. | 148-4602 | [4] | GEAR-PLANETARY(24-TEETH) |
| 20. | 148-4603 | [4] | GEAR-PLANETARY(24-TEETH) |
| 21. | 148-4604 | [1] | GEAR-RING(67-TEETH) |
| 22. | 148-4605 | [1] | SHAFT-PINION |
| 23. | 418-6218 | [1] | CARRIER-PLANETARY |
| 24. | 148-4608 | [4] | SHAFT-PLANETARY |
| 25. | 148-4609 | [4] | SHAFT-PLANETARY |
| 26. | 148-4611 | [8] | ASHER(71.3X112X1-MM THK |
| 27. | 171-9413 | [1] | SPACER(140.5X160X103.2-MMTHkJ |
| 28. | 191-2511 | [1] | CARRIER-PLANETARY |
| 29. | 191-2513 | [4] | BEARINGAS-ROLLER |
| 30. | 191-2514 | [8] | BEARINGAS |
| 31. | 191-2524 | [1] | HOUSING |
| 32. | 199-4540 | [1] | COVER-HOUSING |
| 33. | 227-6215 | [1] | BOSS(1/4-18-THD) |
| 34. | 099-5194 | [8] | PIN-SPRING |
| 35. | 128-9170 | [2] | SEAL-LIP TYPE |
| 36. | 3K-0360 | [1] | SEAL-0-RING |
| 37. | 5M-4454 | [1] | SEAL-O-RING |
| 38. | 453-3447 M | [10] | BOLT(M12X1.75X40-MM) |
| 39. | 451-2182 | [12] | AASHER-HARD(13.5X25.5X3-MMTHK |
| 40. | 8T-4244 M | [1] | NUT(M12X1.75-THD) |
| 41. | 8T-4956 M | [1] | 8OLT(M12X1.75X35-MM) |
| 42. | 453-4169 M | [24] | BOLT(M16X2X200-MM) |
| 43. | 451-2175 | [24] | AASHER-HARD(17.5X30X3.5-MM THKJ |
| | | |
