TCY Case Crawler Excavator Spare Parts KSC10250 KSC0253 Swing
Reduction Gear CX330 CX350 Gear Reduction
| Model:CX290 CX290B CX300C CX330 CX350 | Part name:Swing Reduction Gearbox |
| Part NO.:KSC10250 KSC0253 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Swing Device |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product details

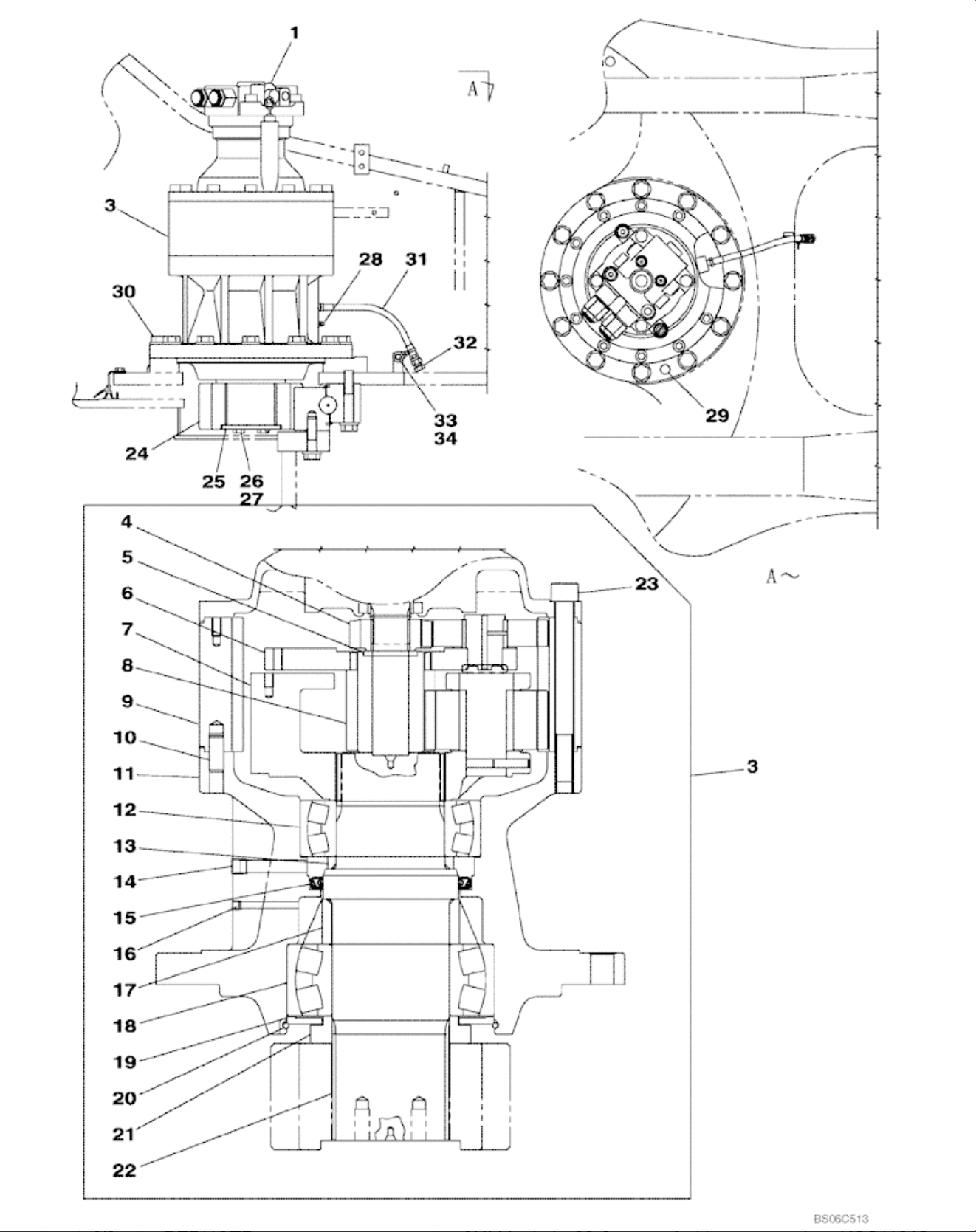

| Pos. | Part No | Qty | Parts name | Comments |
| 1. | KSC0247 |
[1] |
MOTOR,HYDRAULIC |
SUM See Figure 08-061-0001,REFERENCE ONLY-330STD AND 350
DCH33B0291/330NLC DCH33B0290/DAC0733203...AND AFTER
Superseded by part number:KSC10170 |
| 1. | KSC10170R | [1] | REMAN-HYD MOTOR | RAC CX330 CRAWLER EXCAVATOR TIER 3,ASN N5SAP7001(NA)
(1/06-),Reman for New PN KSC0247 |
| 1. | KSC10170C | [1] | CORE-MOTOR HYDRAULIC | RAC Return Number |
| 3. | KSC0253 | [1] | REDUCER | SUM Incl.4-23 Superseded by part number:KSC11010 |
| 3. | KSC10250R | [1] | REMAN-REDUCTION UNIT | RAC CX330 CRAWLER EXCAVATOR TIER 3,ASN N5SAP7001(1/06-),
Reman for New PN KSC0253 Superseded by part number:KSC11010R |
| 3. | KSC10250C | [1] | CORE-REDUCTlON UNIT | RAC Return Number |
| 1. | KSC10170 | [1] | HYDRAULIC MOTOR | SUM See Figure 08-061-0001,Replaces KSC0247 |
| 4. | KSC0220 | [1] | SUN GEAR | SUM |
| 5. | KSC0212 | [1] | PLATE,THRUST | SUM |
| 6. | KSC0245 | [1] | CARRIER | SUM |
| 7. | KSC0246 | [1] | CARRIER | SUM |
| 8. | KSC0219 | [1] | SUN GEAR | SUM |
| 9. | KSC0221 | [1] | RING | SUM |
| 10. | KTC0155 | [4] | PIN | SUM |
| 11. | KSC0248 | [1] | BOX | SUM D16x40 |
| 12. | KSC0207 | [1] | BEARING,120mm IDx200mm
ODx62mm W | SUM |
| 13. | KSC0210 | [1] | SPACER | SUM |
| 14. | 150824A1 | [1] | PLUG | SUM |
| 15. | KTC0153 | [1] | OIL SEAL | SUM |
| 16. | 158352A1 | [2] | PLUG | SUM |
| 17. | KSC0249 | [1] | SPACER | SUM |
| 18. | 150491A1 | [1] | ROLLER BEARING,130mm ID
x280mm ODx93mm W | SUM |
| 19. | KSC0250 | [1] | BEARING COVER | SUM |
| 20. | KSC0251 | [1] | RETAINING WIRE | SUM |
| 21. | KSC0214 | [1] | SPACER | SUM |
| 22. | KSC0222 | [1] | SHAFT | SUM |
| 23. | 150483A1 | [12] | BOLT,Hex Skt,M20 | SUM M20*200 |
| 24. | KSC0201 | [1] | GEAR | SUM |
| 25. | 150285A1 | [1] | PLATE,LOCKING | SUM |
| 26. | 167069A1 | [1] | WASHER | SUM |
| 27. | 627-16040 | [2] | BOLT,Hex,M16*2*40mm,Cl
10.9,Full Thd | CAS Superseded by part number:374835 |
| 28. | 153630A1 | [1] | LUBE NIPPLE | SUM |
| 29. | 150317A1 | [1] | HEADED PIN,24mm ODx
90mm L | SUM |
| 30. | 166477A1 | [12] | BOLT,Sems,M24*90mm | SUM |
| 31. | KTJ0315 | [1] | HYDRAULIC HOSE,9.52 mm
ID*350.00 mm | SUM Superseded by part number:KNJ14580 |
| 32. | KHP0501 | [1] | PLUG | SUM |
| 33. | KHR2584 | [1] | CLAMP | SUM |
| 34. | KHJ1215 | [1] | BOLT,Spcl | SUM |
