TCY Kobelco Excavator Spare Parts YN32W01051P1 YN32W01056P1 SK200-8
Swing Shaft Pinion
Product details
| Model | SK200-8 |
| Part name | Swing Shaft Pinion |
| Part Number | YN32W01051P1 YN32W01056P1 ect . |
| Teeth | 13T/34T |
| MOQ | 1PCS |
| Application | Excavator Swing Drive |
| Processing | Casting |
| Place of Origin | zhejiang,China |
| Delivery Time | 1-3 days Or negotiate |

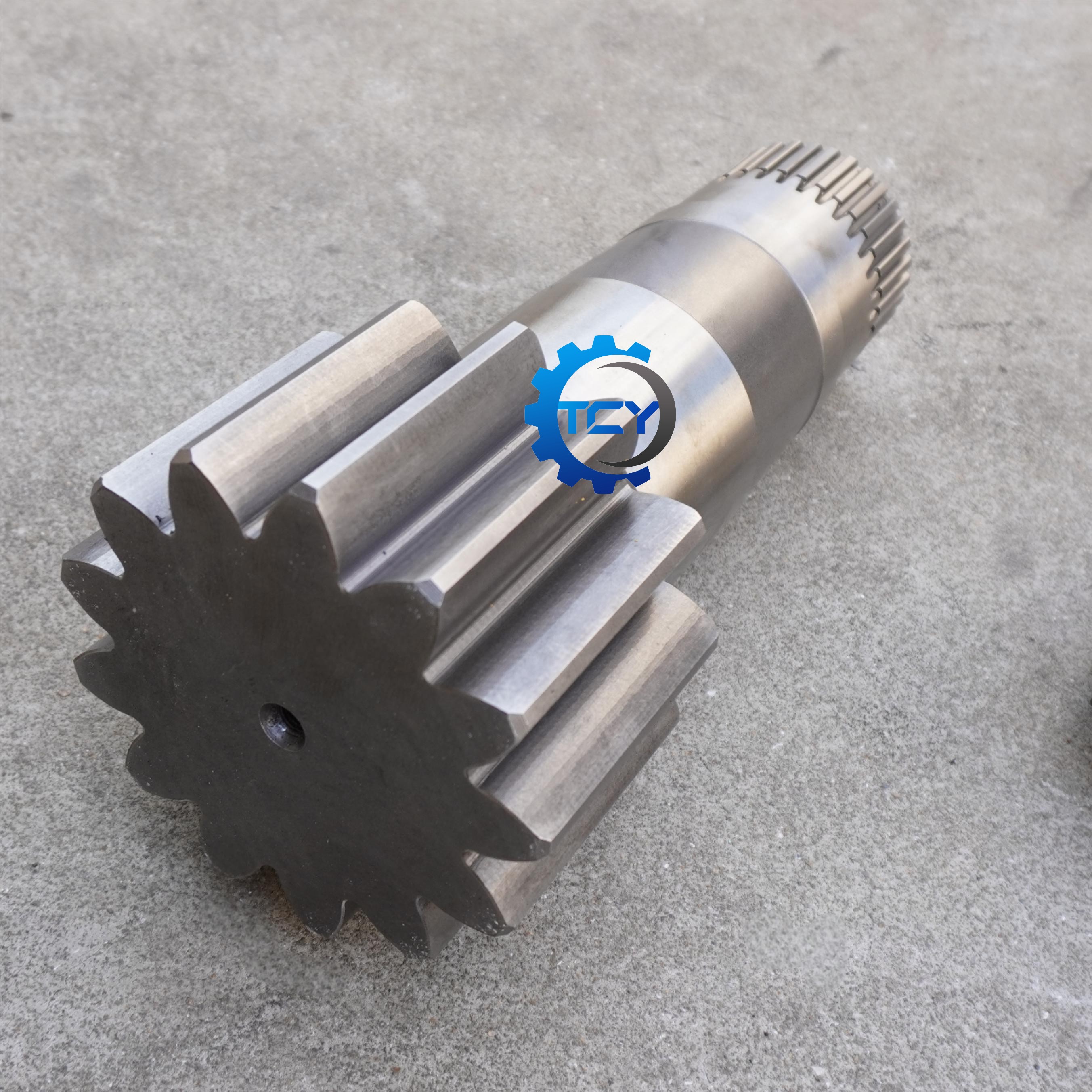

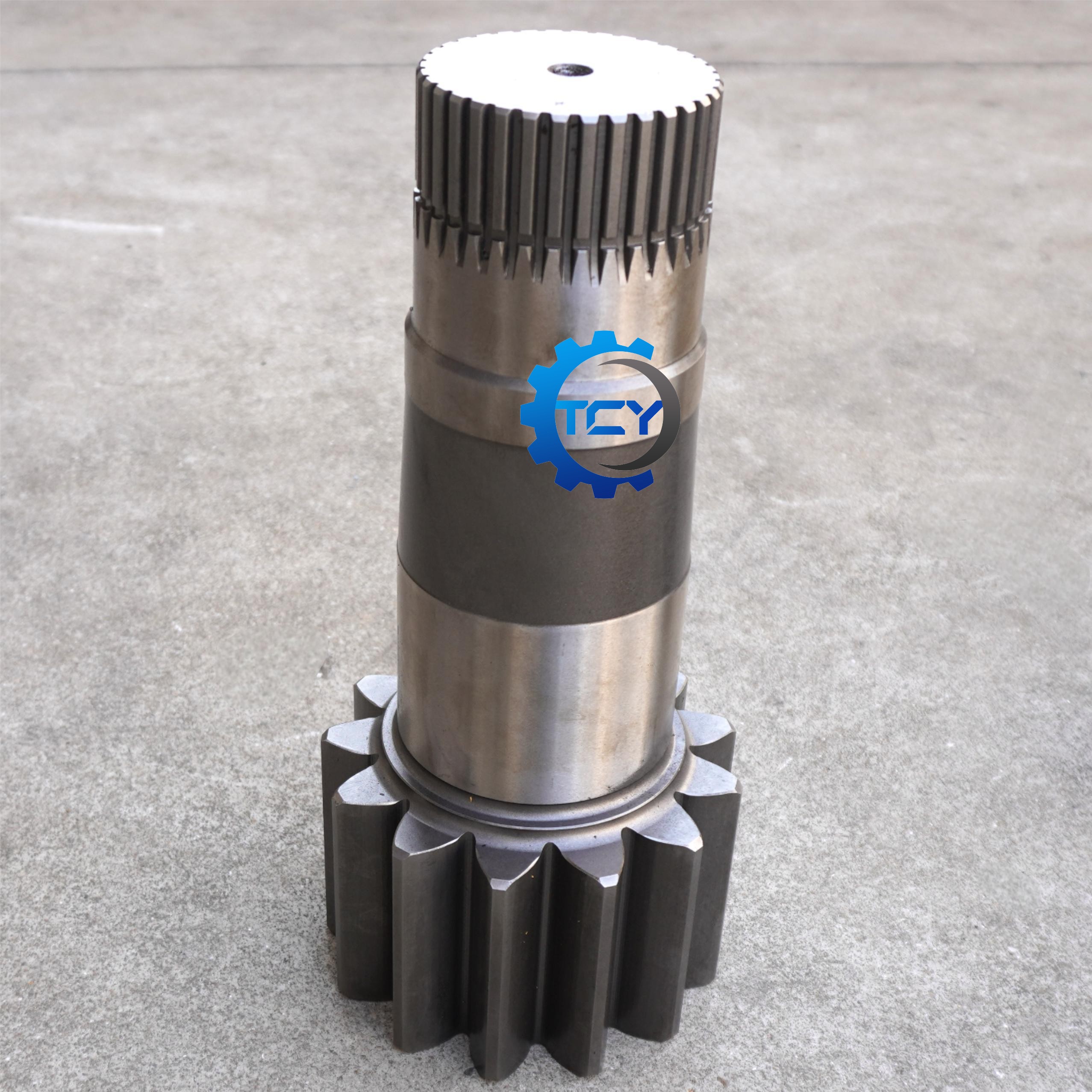

Product picture
| Pos. | Part No | Qty | Parts name | Comments |
| · | YN32W00022F1 | [1] | GEAR REDUCTION UNIT | SM Reduction Assy (swing)Superseded by part number:
YN32WO0022F2 |
| 1. | YN32W01051P1 | [1] | SHAFT | SM |
| 2. | YN32W01052P1 | [1] | GEAR | SM Sun |
| 3. | YN32W01117P1 | [4] | GEAR | SM Pinion |
| 4. | YN32W01054P1 | [1] | GEAR | SM Sun |
| 5. | YN32W01055P1 | [4] | GEAR | SM Pinion |
| 6. | YN32W01056P1 | [1] | RING GEAR | SM |
| 7. | YN32W01118F1 | [1] | SPIDER | SM Assy |
| 7-1. | YN32W01119P1 | [1] | | |
| 7-2. | YN32W01120P1 | [4] | | |
| 8. | YN32W01058P1 | [1] | CARRIER,Housing,Spider | SM Spider |
| 9. | YN32W01067P1 | [4] | SHAFT | SM |
| 10. | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Spherical Superseded by part number:25Z804D18 |
| 11. | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Spherical Superseded by part number:R25P0047D9 |
| 12. | YN32W01060P1 | [1] | OIL SEAL | SM Oil Seal |
| 13. | YN32W01104P1 | [1] | BOX | SM Housing Superseded by part number:YN32WO0022F2 |
| 14. | YN32W01026P1 | [4] | THRUST WASHER | KOB |
| 15. | YN32W01028P1 | [4] | THRUSTWASHER | KOB |
| 16. | YN32W01022P1 | [136] | ROLLER | KOB |
| 17. | YN32W01072P1 | [4] | NEEDLE BEARING | SM Needle |
| 18. | YN32W01063P1 | [8] | WASHER | SM Thrust |
| 19. | ZR16X03500 | [1] | RING | KOB Retaining |
| 20. | ZR16X09000 | [1] | RING | KOB Retaining |
| 21. | YN32W01082P1 | [1] | SLEEVE | SM |
| 22. | ZP26D08025 | [4] | PIN | KOB Spring |
| 23. | HS23C14135G1 | [11] | SCREW,M14x135mm | SM Cap |
| 24. | PV02B01073DB | [2] | CAP | KOB |
| 25. | YN32W01080D1 | [1] | RIGID TUBE | SM |
| 26. | ZG31U08000 | [1] | HYD CONNECTOR | SM Elbow |
| 27. | ZE82T08000 | [1] | PLUG | KOB |
| 28. | ZR16X04000 | [4] | RING | KOB Retaining |
| 29. | YN32W01081P1 | [1] | OIL SEAL | SM Oil Seal |
| 30. | ZG91V02000 | [1] | LUBE NIPPLE,67 Degree x1/8"
PT | KOB 67°x1/8"PT Superseded by part number:72283072 |
| 31. | 2444Z3305 | [1] | BREATHER | KOB Valve,Relief |
