TCY 31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR
HYUNDAI R300LC-9A R300LC-9S R305LC-7
| Model:R300LC-9A | Part name:Swing Reduction Gearbox |
| Part NO.:31Q8-10141 31Q8-10142 31Q8-10142AR | MOQ:1PCS |
| Packing:Wooden case | Weight:280KG |
| Aftersale service provided:Online support | Apply To:Excavator Swing Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

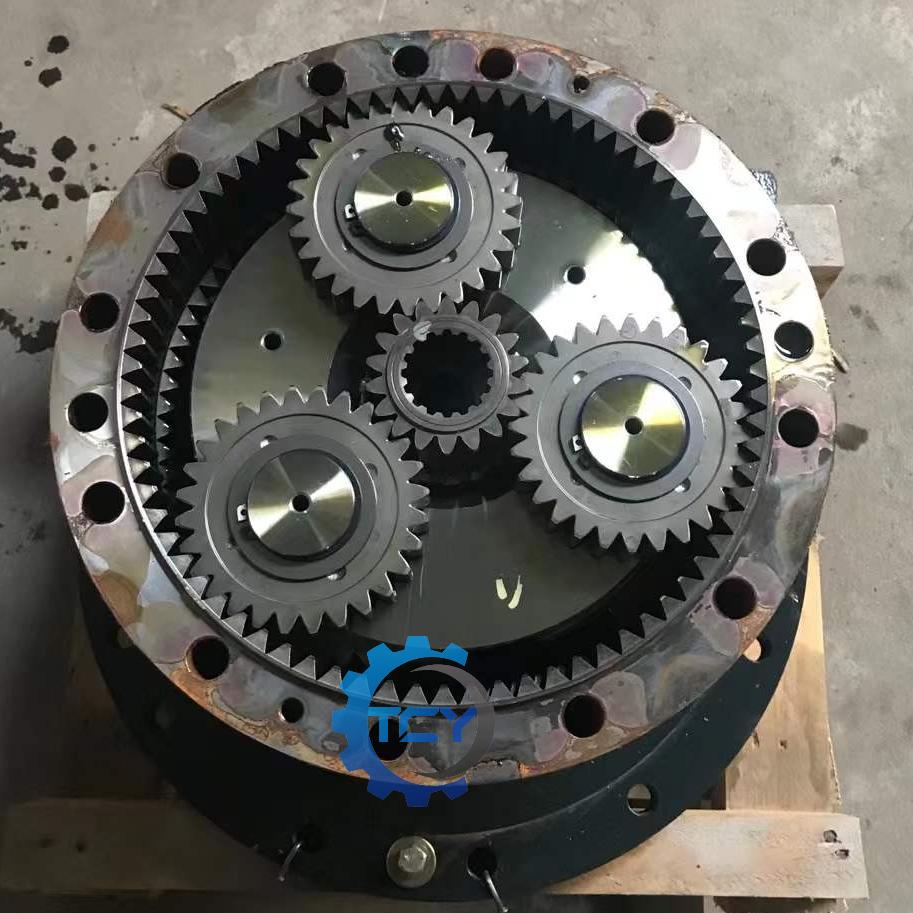

Product picture

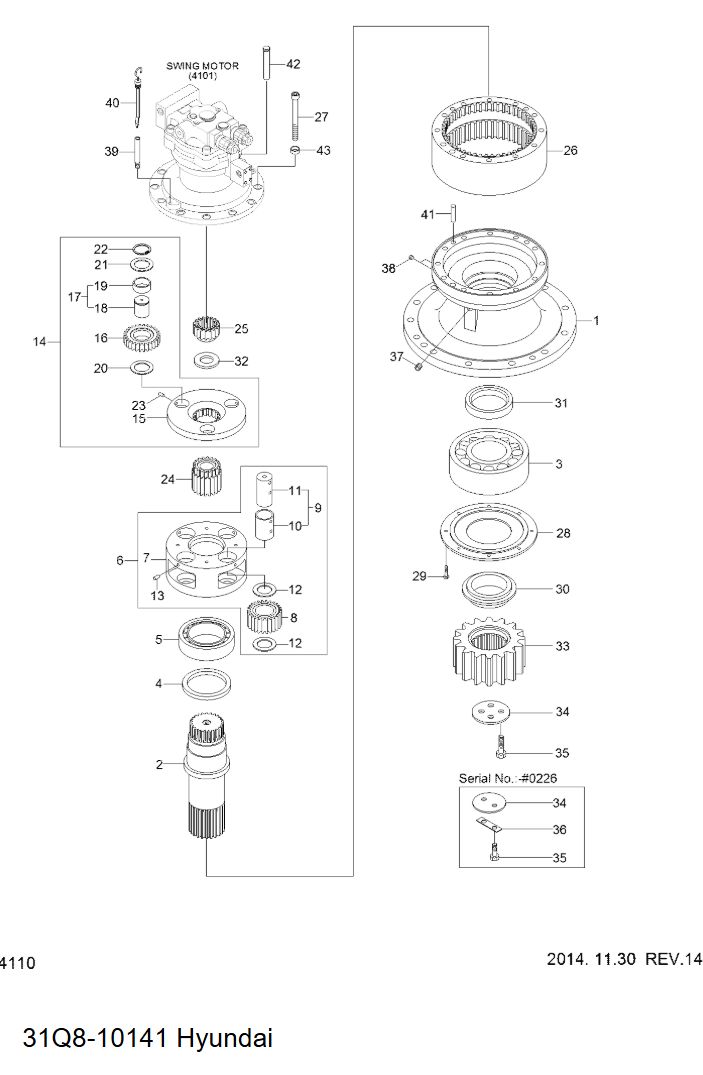

| Pos. | Part No | Qty | Parts name |
| *-2. | 31Q8-10141 | [1] | SWING REDUCTION GEAR |
| *-2. | 31Q8-10142 | [1] | SWING REDUCTION GEAR |
| *-2. | 31Q8-10142AR | [1] | SWING REDUCTION GEAR |
| 1. | XKAQ-00451 | [1] | CASING |
| 2. | XKAQ-00760 | [1] | SHAFT-DRIVE |
| 3. | XKAQ-00146 | [1] | BEARING-ROLLER |
| 4. | XKAQ-00149 | [1] | SEAL-OIL |
| 5. | XKAQ-00027 | [1] | BEARING-ROLLER |
| 6. | XKAQ-00467 | [1] | CARRIER ASSY 2 |
| 7. | XKAQ-00468 | [1] | CARRIER 2 |
| 8. | XKAQ-00469 | [4] | GEAR-PLANET 2 |
| 9. | XKAQ-00470 | [4] | PIN ASSY 2 |
| N10. | XKAQ-00471 | [1] | PIN 2 |
| N11. | XKAQ-00472 | [1] | BUSHING 2 |
| 12. | XKAQ-00435 | [8] | WASHER-THRUST |
| 13. | XKAQ-00050 | [4] | PIN-SPRING |
| 14. | XKAQ-00473 | [1] | CARRIER ASSY 1 |
| 15. | XKAQ-00453 | [1] | CARRIER 1 |
| 16. | XKAQ-00454 | [3] | GEAR-PLANET 1 |
| 17. | XKAQ-00440 | [3] | PIN ASSY 1 |
| N18. | XKAQ-00441 | [3] | PIN 1 |
| N19. | XKAQ-00079 | [3] | BUSHING 1 |
| 20. | XKAQ-00417 | [3] | PLATE 1-SIDE |
| 21. | XKAQ-00416 | [3] | PLATE 2-SIDE |
| 22. | XKAQ-00041 | [3] | RING-STOP |
| 23. | XKAQ-00048 | [3] | PIN-SPRING |
| 24. | XKAQ-00455 | [1] | GEAR 2-SUN |
| 25. | XKAQ-00456 | [1] | GEAR 1-SUN |
| 26. | XKAQ-00457 | [1] | RING-GEAR |
| 27. | XKAQ-00466 | [12] | BOLT-SOCKET |
| 28. | XKAQ-00626 | [1] | COVER PLATE |
| 29. | XKAQ-00064 | [8] | BOLT-HEX |
| 30. | XKAQ-00627 | [1] | SPACER |
| 31. | XKAQ-00628 | [1] | RING-SPACER |
| 32. | XKAQ-00447 | [1] | PLATE 3-THRUST |
| 33. | XKAQ-00629 | [1] | GEAR-PINION |
| 34. | XKAQ-00761 | [1] | PLATE-LOCK |
| 35. | XKAQ-00756 | [4] | BOLT-HEX |
| 37. | XKAQ-00049 | [1] | PLUG |
| 38. | XKAQ-00066 | [2] | PLUG |
| 39. | XKAQ-00035 | [1] | PIPE-GAUGE |
| 40. | XKAQ-00034 | [1] | BAR-GAUGE |
| 40. | XKAQ-00985 | [1] | BAR-GAUGE |
| 41. | XKAQ-00072 | [2] | PIN-KNOCK |
| 42. | XKAQ-00143 | [1] | POST-AIR BREATHER |
| 42. | XKAQ-00800 | [1] | AIR BREATHER ASSY |
| N43. | XKAQ-00631 | [1] | BUSHING 2 |
