TCY Hydraulic Travel Motor 39Q8-40101 39Q8-40100 39Q8-40101 39Q8-41100 DRIVE UNIT 38K8-40101
FINAL DRIVE R300LC9A R300LC9S R300LC9SH RD340LC-7 HX300 HX330L
HX340 SL TRAVEL MOTOR
Product description
| Model: R300LC9A R300LC9S R300LC9SH RD340LC-7 HX300 HX330L HX340 SL ect. | Part name:Final drive |
| Part NO.:39Q8-40100 39Q8-40101 39Q8-40101 39Q8-41100 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Final Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

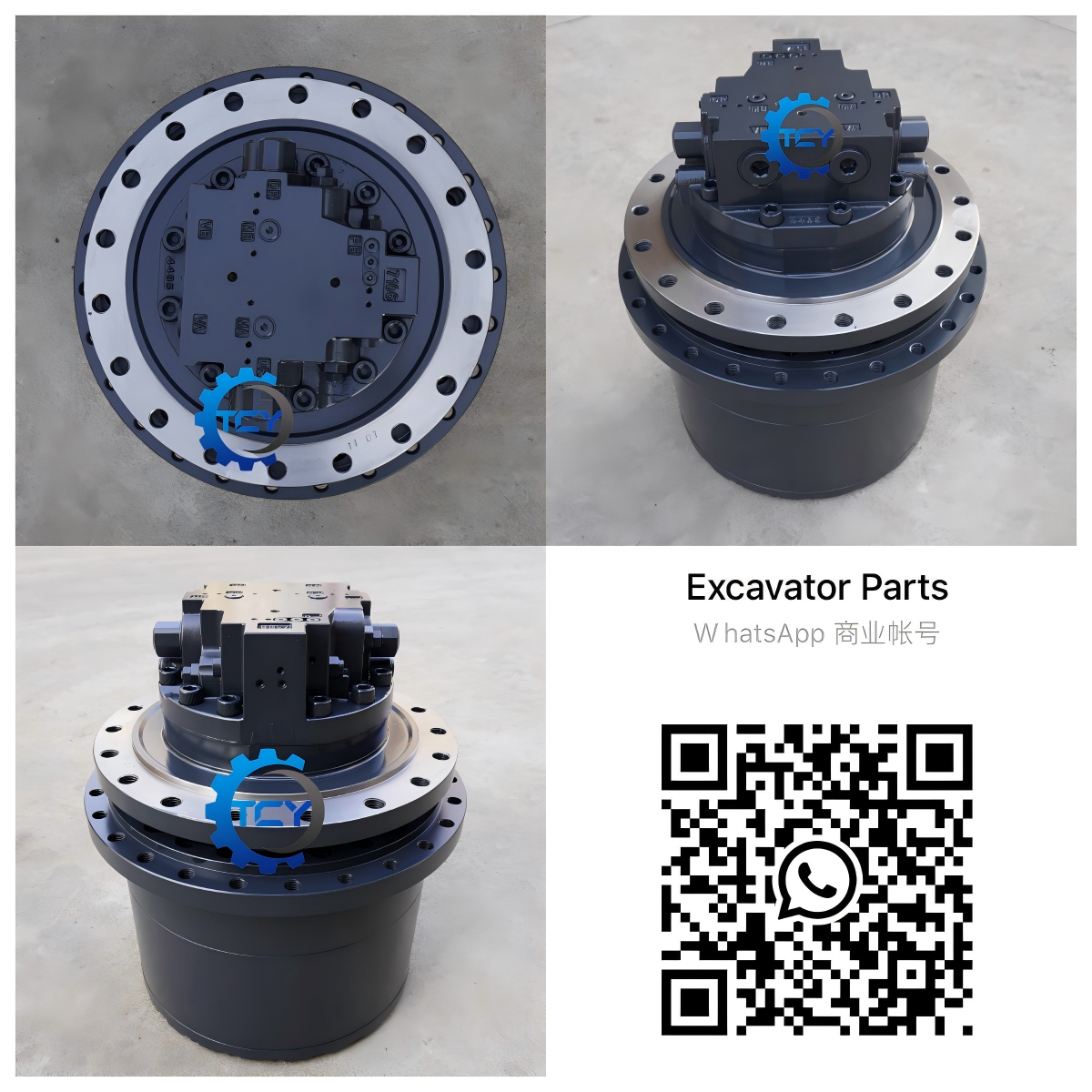

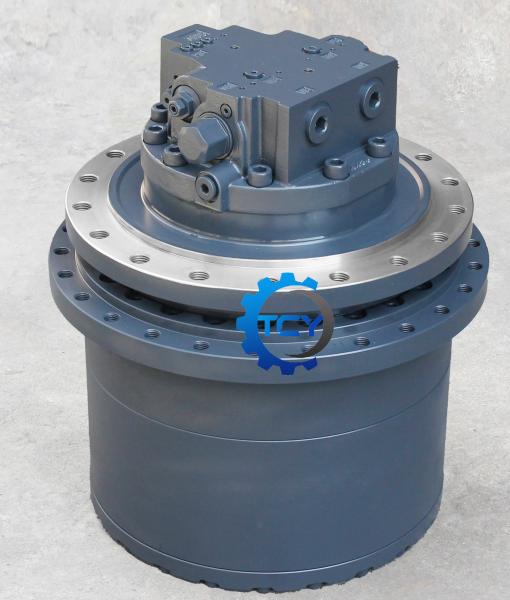

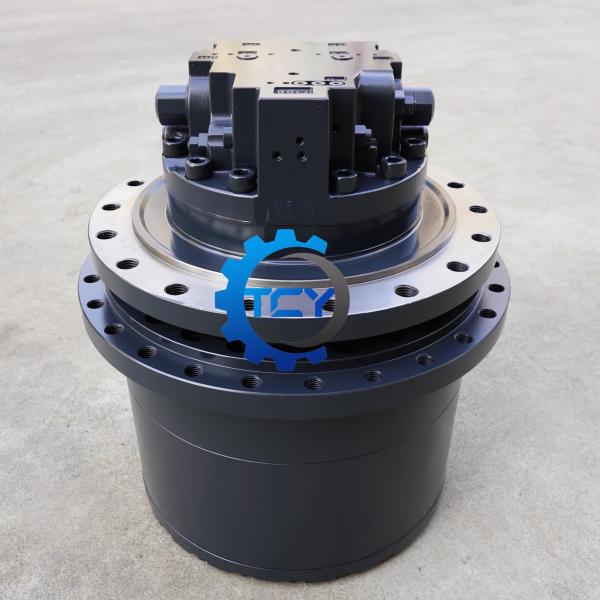

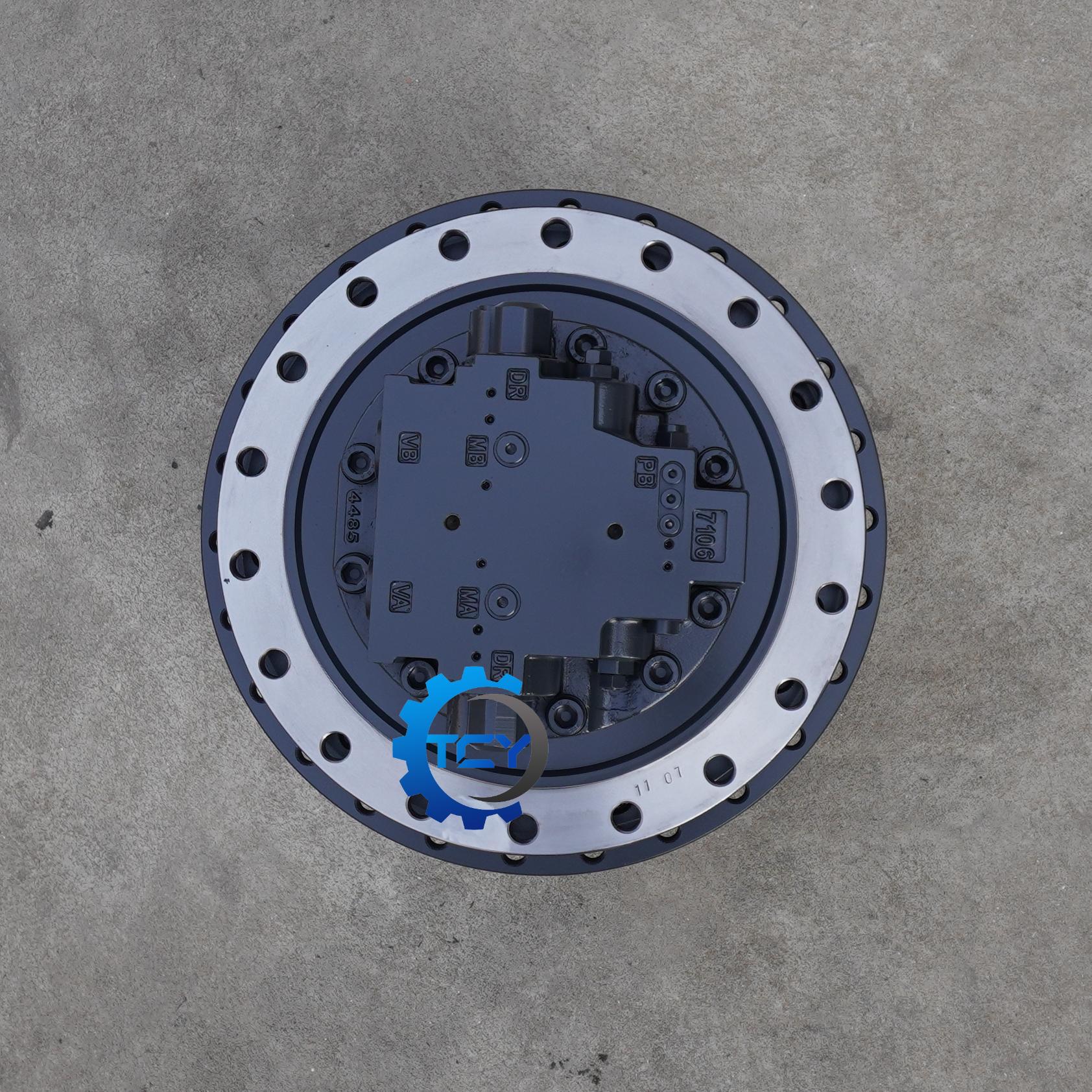

Product Show
Pos.
*. | Part No | Parts name |
| *. | 39Q8-40100 | [1] TRAVEL MOTOR ASSY |
| *. | 39Q8-40101 | [1] TRAVEL MOTOR ASSY |
| *. | 38Q8-40100 | [1] TRAVEL MOTOR ASSY |
| *. | 38Q8-40101 | [1] TRAVEL MOTOR ASSY |
| *-1. | 39Q8-41100 | [1] TRAVEL MOTOR UNIT |
| *-1. | 38Q8-41100 | [1] TRAVEL MOTOR |
| K2. | 39Q6-41120 | [3] PLUG |
| K29. | 39Q8-41410 | [1] PIN-PARALLEL |
| 30 | 39Q8-41420 | [14] SPRING |
| NK31. | Y172-049004 | [1] O-RING |
| K32. | S471-800404 | [1] PIN-SPRING |
| K33. | 39Q6-41450 | [2] PIN-PARALLEL |
| * | 39Q8-41440K | [2] COVER ASSY-REAR |
| K34. | 39Q8-41440 | [1] COVER-REAR |
| K34. | 39Q8-41440AS | [1] COVER-REAR |
| K35. | 39Q8-41450 | [1] MAIN SPOOL ASSY |
| K36. | 39QB-41200 | [2] SEAT-SPRING |
| K37. | 39Q8-41500 | [2] PLUG |
| K38. | 39Q6-41540 | [2] SPRING |
| NK39. | S632-040004 | [2] O-RING |
| K40. | 39Q8-41510 | [2] RESTRICTOR |
| K41. | 39Q8-41520 | [2] SPRING |
| 42. | 39Q6-41780 | [5] PLUG |
| K42. | 39Q6-41780 | [2] PLUG |
| NK43. | S631-008004 | [5] O-RING |
| NK44. | S631-011004 | [2] O-RING |
| NK45. | S631-012004 | [1] O-RING |
| NK46. | S631-016004 | [1] O-RING |
| K47. | 39Q8-41580 | [2] RELIEF VALVE ASSY |
| 47-3. | S631-12S004 | [1] O-RING |
| 47-8. | S631-021004 | [1] O-RING |
| 47-12. | S631-015004 | [1] O-RING |
| 47-16. | 39Q6-41890 | [1] O-RING |
| K48. | 39Q8-41530 | [1] SPOOL |
| K49. | 39Q8-41540 | [1] PLUG |
| K50. | 39Q6-41710 | [1] SEAT-SPRING |
| K51. | 39Q6-41720 | [1] PIN-PARALLEL |
| K52. | 39Q6-41730 | [1] SPRING |
| K53. | 39Q6-41740 | [1] CONNECTOR |
| NK54. | S631-014004 | [2] O-RING |
| 55. | S109-180556 | [10] BOLT-SOCKET |
| K56. | 39Q6-41760 | [3] VALVE-CHECK |
| K57. | 39Q6-41770 | [3] SPRING |
| K58. | 39Q6-41750 | [2] PLUG |
| K59. | 39Q6-41880 | [1] RESTRICTOR |
| K60. | 39Q6-41860 | [1] RESTRICTOR |
| K61. | 39Q8-41550 | [1] NAME PLATE |
| K61. | 38Q8-41550 | [1] NAME PLATE |
| K62. | 39Q6-41800 | [2] RIVET |
| K63. | 39QB-41340 | [3] PLUG |
| K64. | P220-110104 | [2] PLUG-HEX |
| NK65. | S631-018004 | [2] O-RING |
| *-2. | @ | [1] TRAVEL REDUCTION GEAR |
| K. | 39Q8-41140 | [1] PLUG KIT |
| K. | 39Q8-41250 | [1] ROTARY KIT |
| K. | 39Q8-41260 | [1] CYLINDER BLOCK KIT |
| K. | 39Q8-41290 | [1] RETAINER KIT |
| K. | 39Q8-41560 | [1] O-RING KIT |
| K. | 39Q8-41570 | [1] D-RING KIT |
| K. | 39Q6-41840 | [1] RELIEF VALVE O-RING KIT |
| K. | 39Q8-41440K | [1] COVER KIT-REAR |
| K. | 38Q8-41440K | [1] COVER KIT-REAR |
